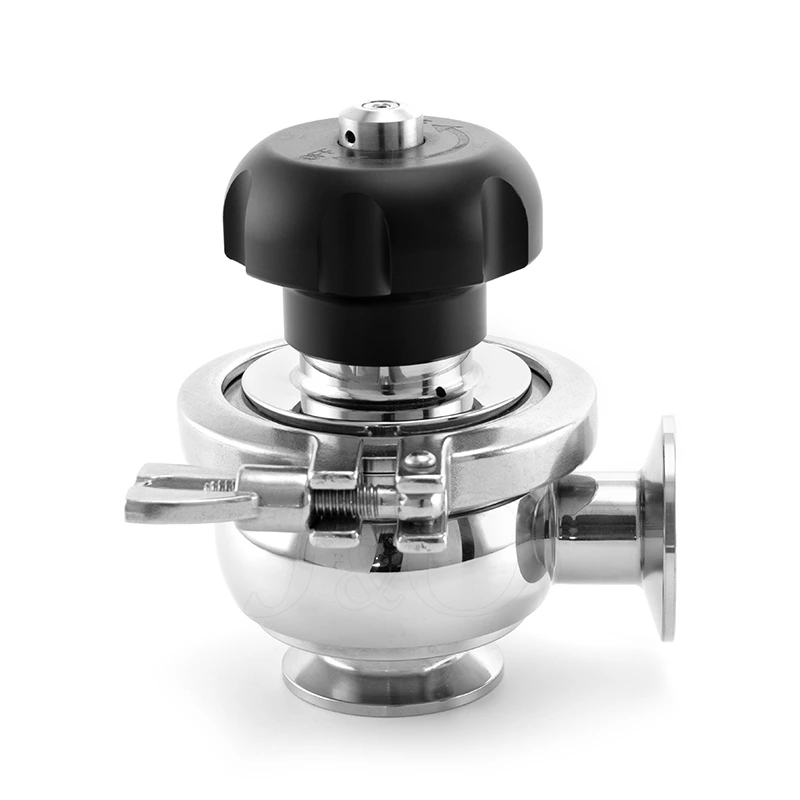

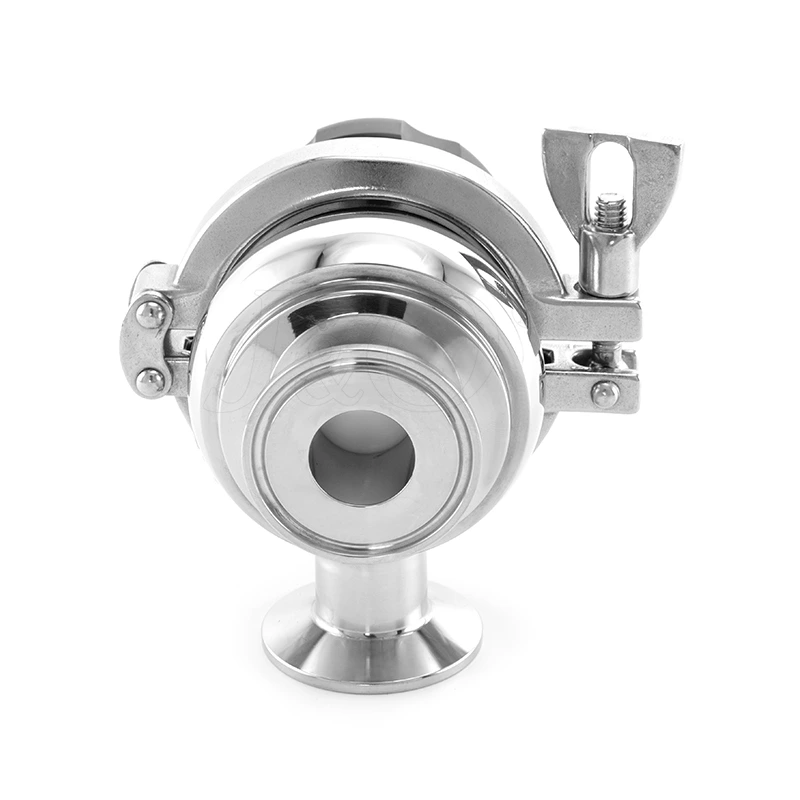

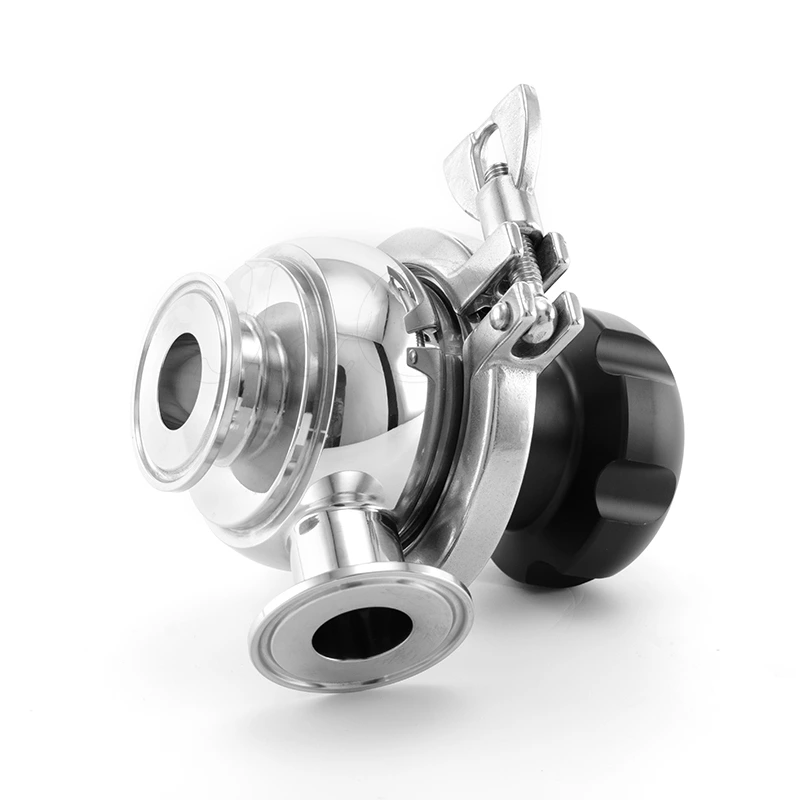

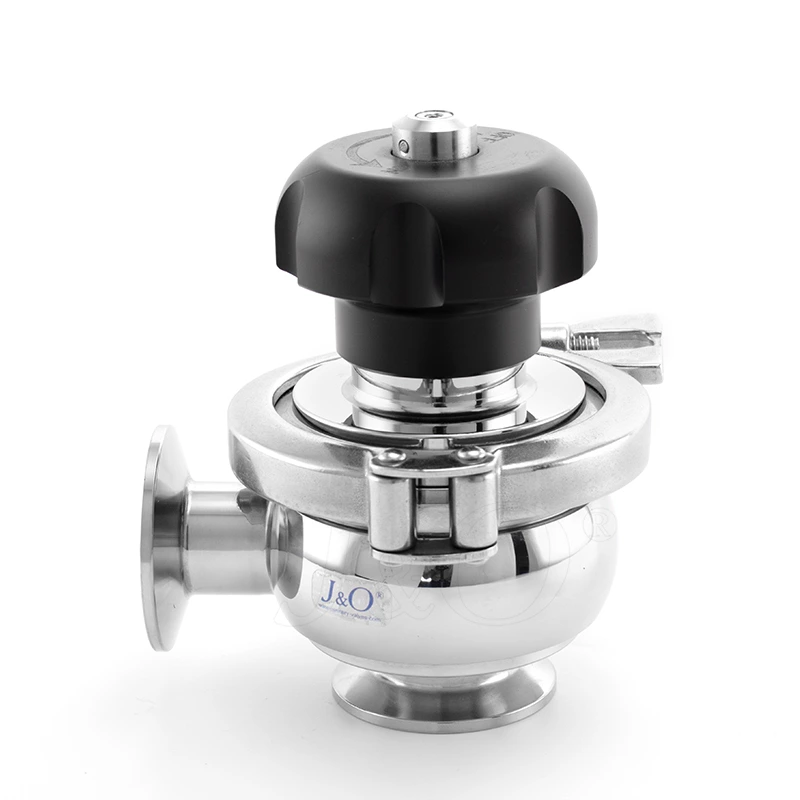

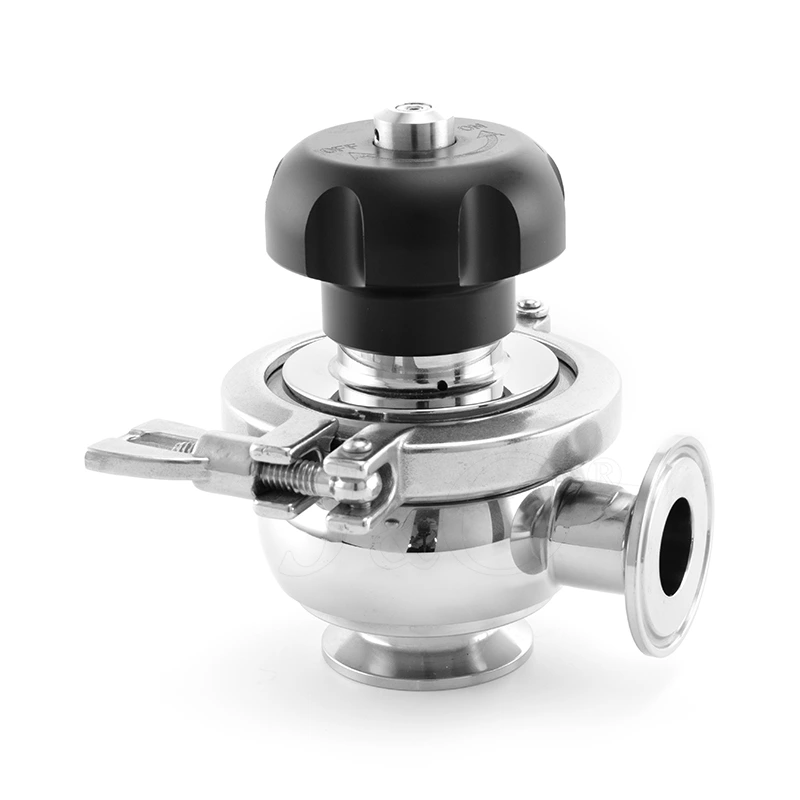

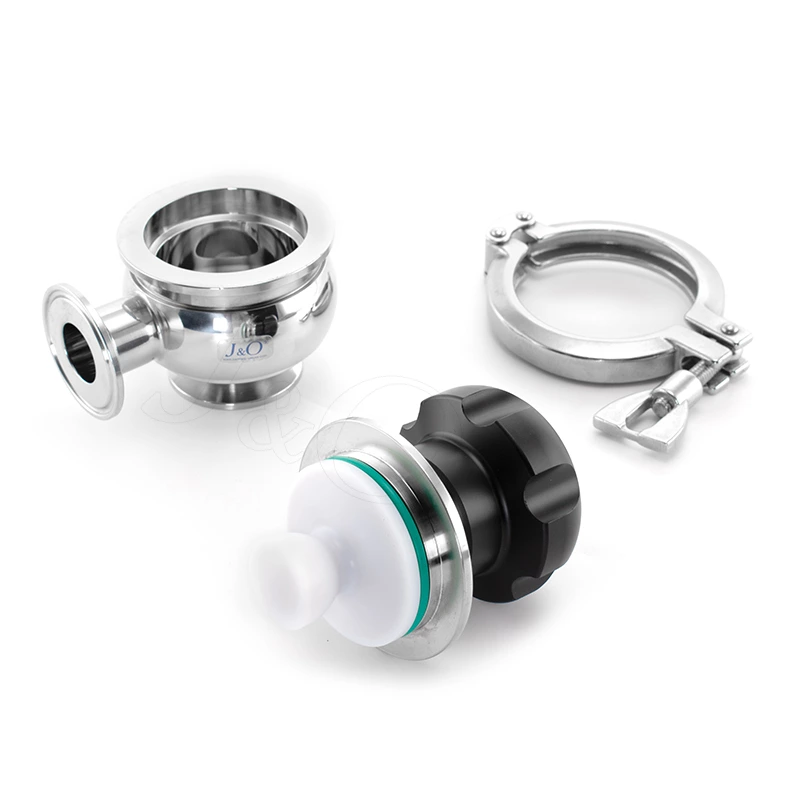

Aseptic Stainless Steel Manual Shut Off Valve

Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
1000 units per Month
Payment:
T/T, L/C, Western Union

Aseptic Stainless Steel Manual Shut Off Valve

  • The aseptic shut off valve has a diaphragm sealing structure, which avoids the contamination of materials by external organisms during the opening and closing process of the valve.
  • The seal is made of Daikin materail and the drum structure design ensures usability and durability to a greater extent, with a lifespan of more than 100,000 times.
  • The valve body if forged from SS316L round sttel and precision machined by CNC. The inner surface roughness can reach Ra≤0.4μm.

Product Description

Body Material: SS316L
Seal Material: PTFE
Size: 1", 1.5", 2"
Working Pressure: ≤0.8Mpa
Connection end: Welded,clamped
Roughness:  Outside Ra≤0.6μm, Inner Ra≤0.4μm
Max. Temperature: 150 degree C
Mpa Gas pipe connection: G1/8"
